FV Map-Layers Menu

• To open the layers menu, click the button below the Home View button and above the Zoom controls.

(The icon looks like 3 sheets of stacked, grey paper.)

(Image of the Expandable Layers Menu Button)

• Checking a box will enable the selected feature, while unchecking will disable it.
• The menu is split up into sections to keep items grouped together and easier to locate. Options include:

General

• Asset Tags = Toggles the informational asset tags that can be configured in FV CAD settings.

(Image of Asset Tag)

• Bases= Toggles base location setup in FV CAD. Default base icon is a yellow star.

(Image of Base Icon & Tag)

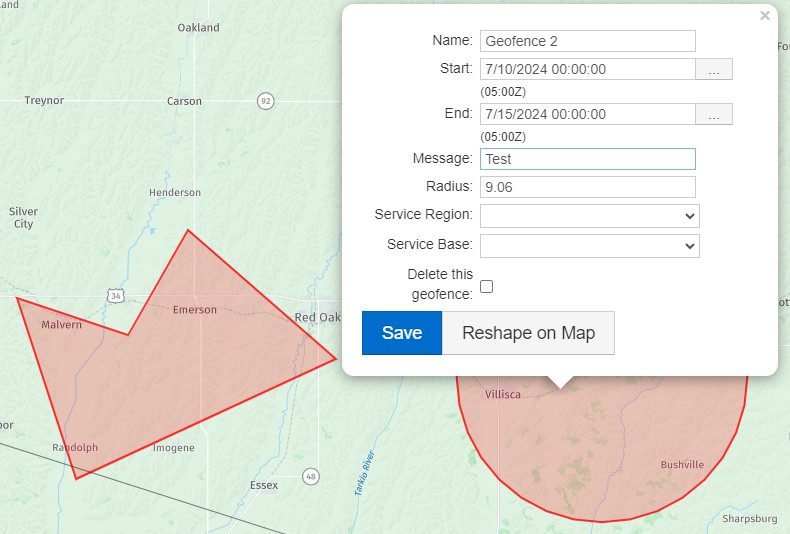

• Geofences = Toggles geofence layer. Geofences are created on the map by the user and stored in the FV database.

(Image of Geofences)

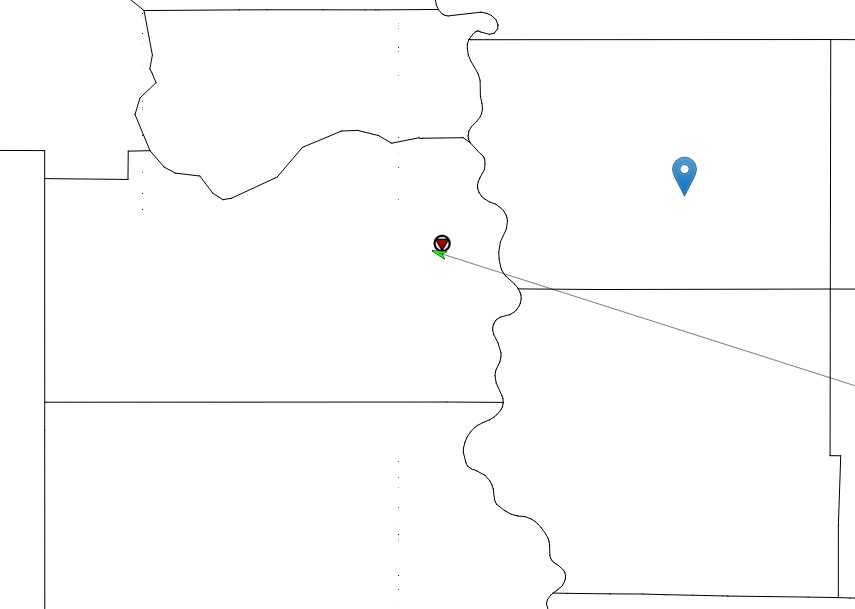

• Counties = Toggles an un-actionable map layer pulled from the United States Census Bureau.

(Image of County Layers)

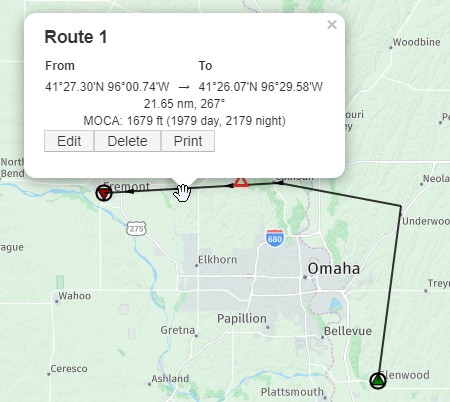

• Routes = Toggles routes shown on the FV Map.

(Image of Route)

• Sounds = Toggles on/off sounds.
• Traffic = Toggles on current street traffic conditions provided by HERE Technologies.

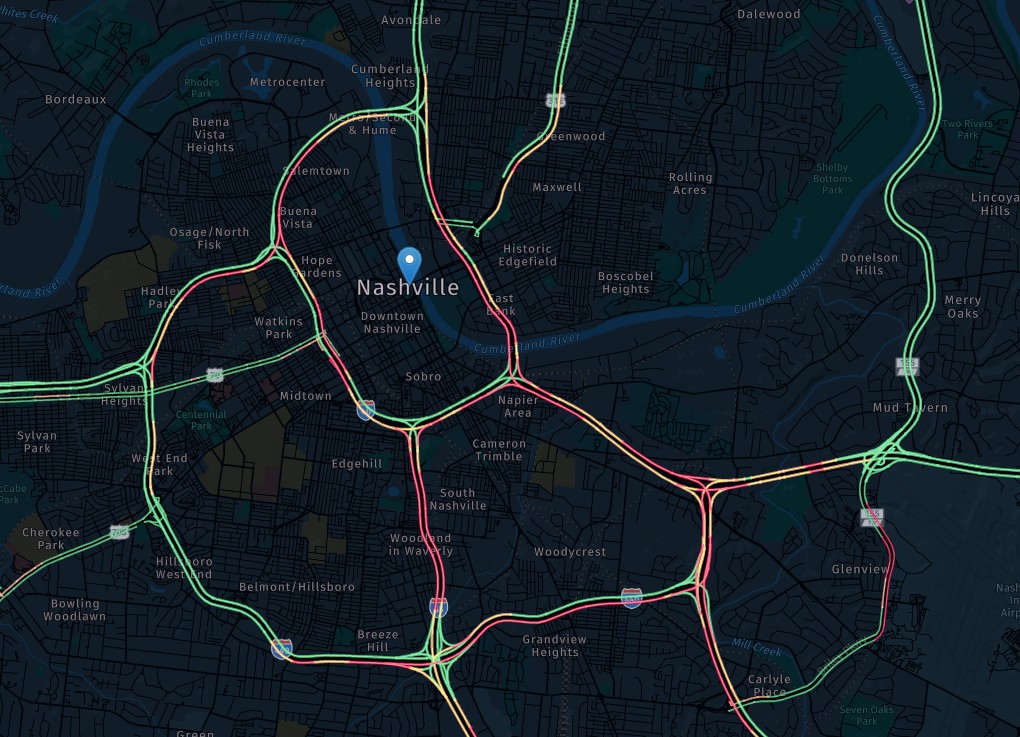

(Image of Traffic Layers)

Requests

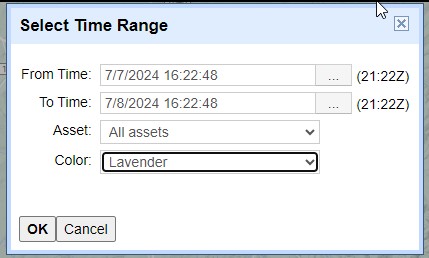

• Asset History = Toggling on opens a selection dialog to view up to 24 hours of asset history. If the asset list is filtered, only the assets included in the filter will have history displayed.

(Image of Assest History Options)

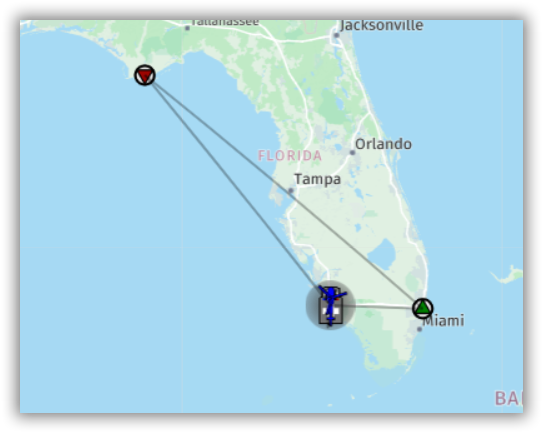

Request Lines =

• All
• All Assigned
• Air Only
• Only Current Leg

(Image of Request Lines)

Notifications

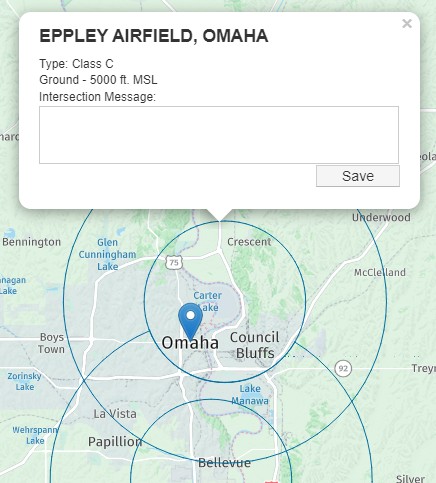

• Airspace=Toggles Airspace layer. Each drawn airspace can be clicked on to show details.

(Image of Airspace & Informational Tag)

• Obstacles = From Aeronautical Information Services. Each drawn Airspace can be clicked on to show details.

(Image of Obstacles Icons & Tags)

• TFRs/Notams=Toggles TFR/Notam layer from Federal Aviation Administration - Graphic TFR's . Each drawn TFR/Notam can be clicked on to show details and allow for a user-input intersection message. If entered, this message will be added as a notification to a request whose flight plan passes through the TFR/Notam.

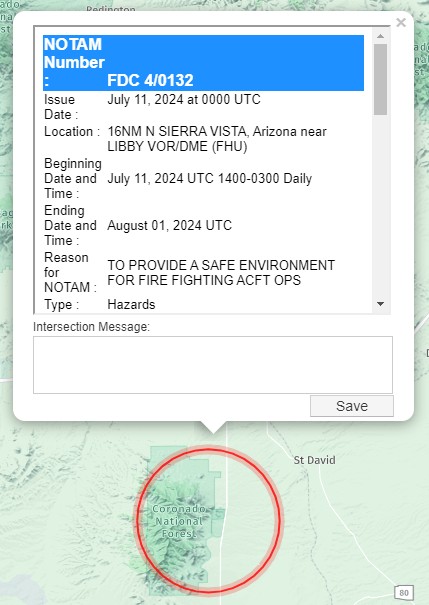

(Image of NOTAM)

Weather

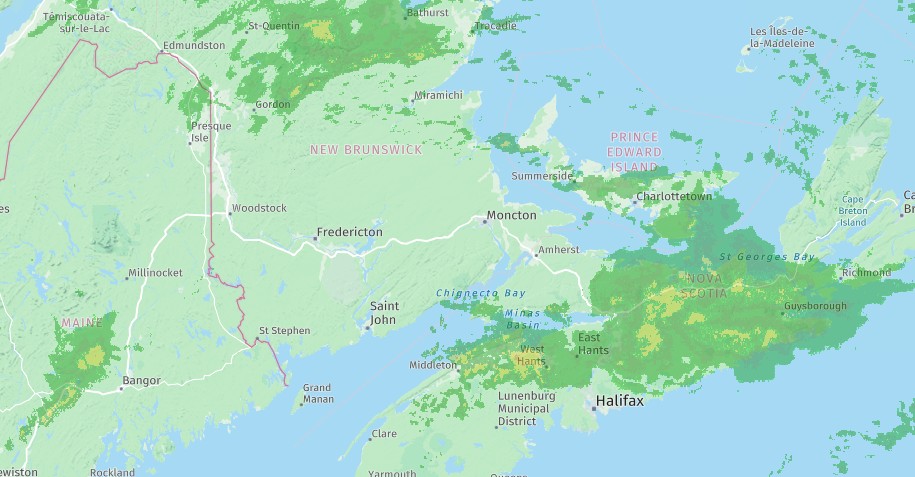

• NexRad = Toggles NexRAD layer. Shows various colors to represent the intensity of precipitation.

(Image of NexRAD)



• Icing = Toggles Icing layer. Blue lines bound the affected areas. Clicking on a boundary will open the relevant icing information.

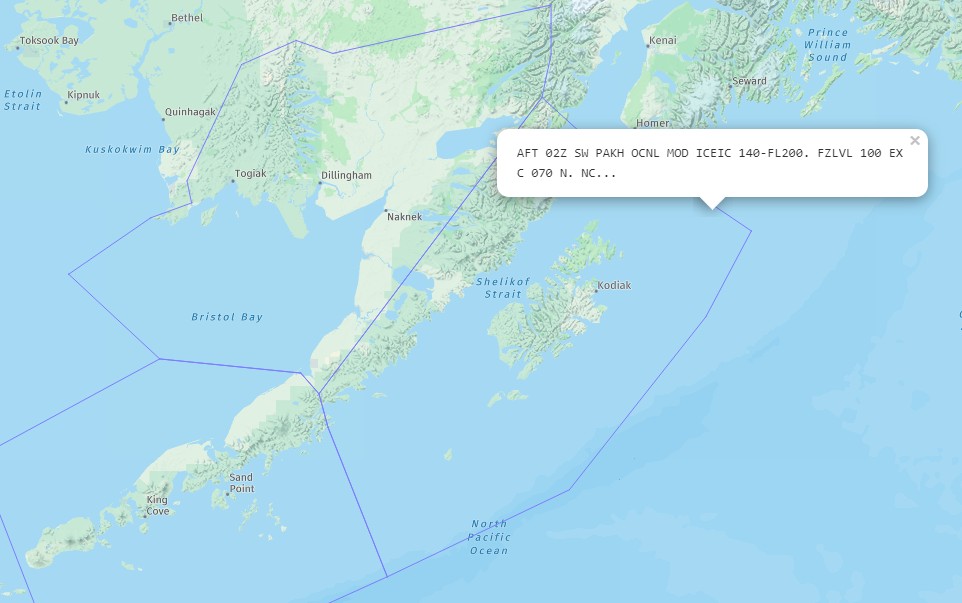

(Image of area Icing)



• IFR AIRMETs = Toggles IFR AIRMET layer. Purple lines bound the affected areas. Clicking on a boundary will open the AIRMET details.

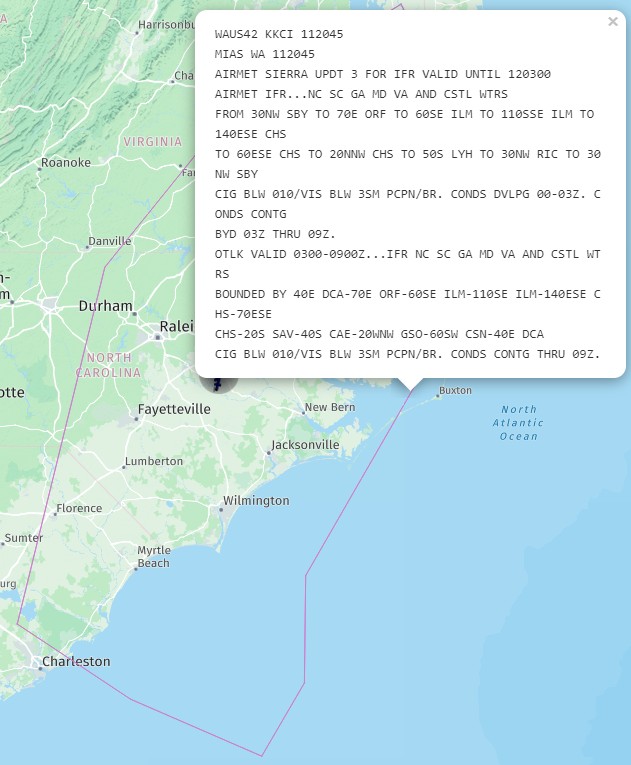

(Image of IFR AIRMET)



• METAR/TAF = Toggles METAR/TAF layer from the Aviation Weather Center. Each drawn METAR/TAF can be clicked on to show details.

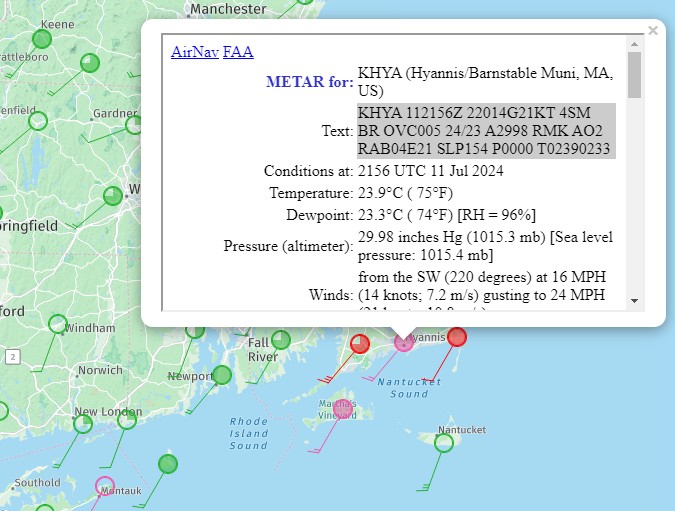

(Image of METAR with barbs)

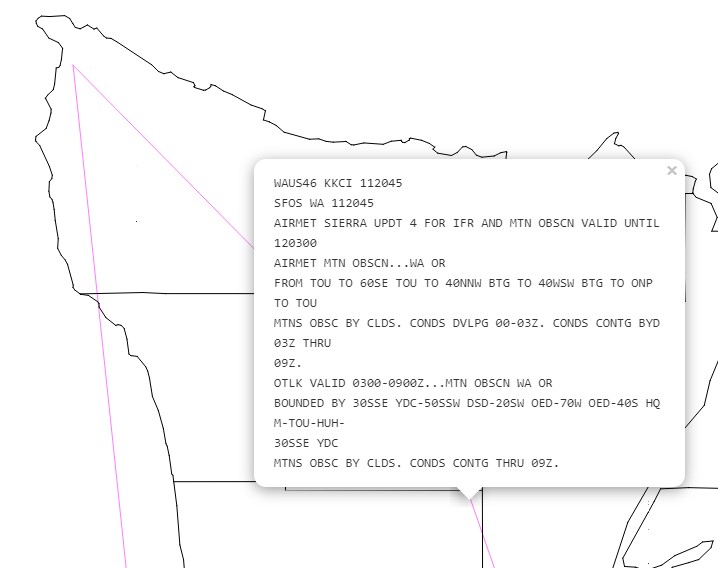

• Mountain Obscuration = Toggles Mountain Obscuration layer. Pink lines bound the affected areas. Clicking on a boundary will open the Mtn. Obsc. details.

(Image of Mountain Obscuration)



Mtn. Obsc. = Toggles Mountain Obscuration layer. Pink lines bound the affected areas. Clicking on a boundary will open the Mtn. Obsc. details.

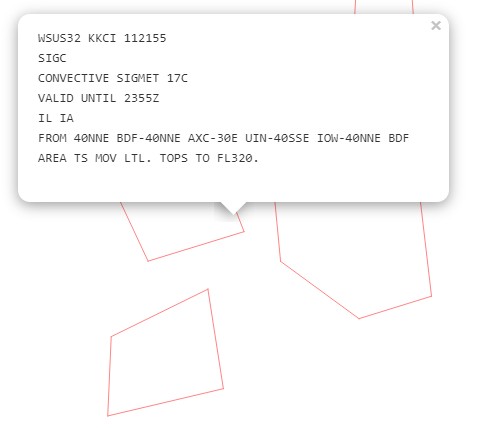

• SIGMETs = Toggles SIGMET layer. Red lines bound the affected areas. Clicking on a boundary will open the SIGMET details.

(Image of SIGMET)

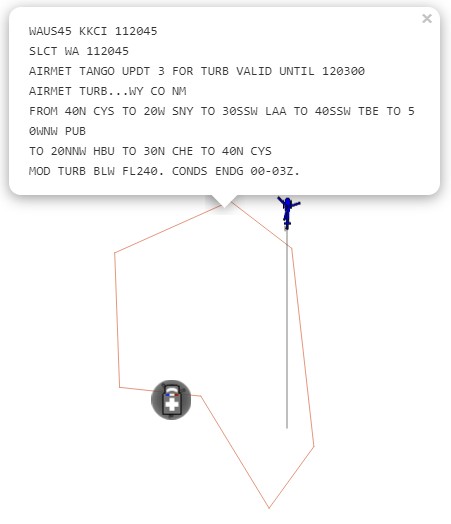

• Turbulence = Toggles Turbulence layer. Orange lines bound the affected areas. Clicking on a boundary will open the Turbulence details.

(Image of Turbulence Polygon & Informational Pop-Out)



Custom

• KML Overlays = Depiction of KML Overlay files configured in FV CAD.

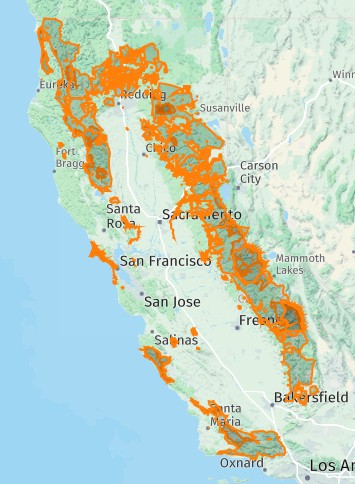

(Image of KML Overlay)



• Response Zones = Depiction of Response Zones configured in FV CAD.

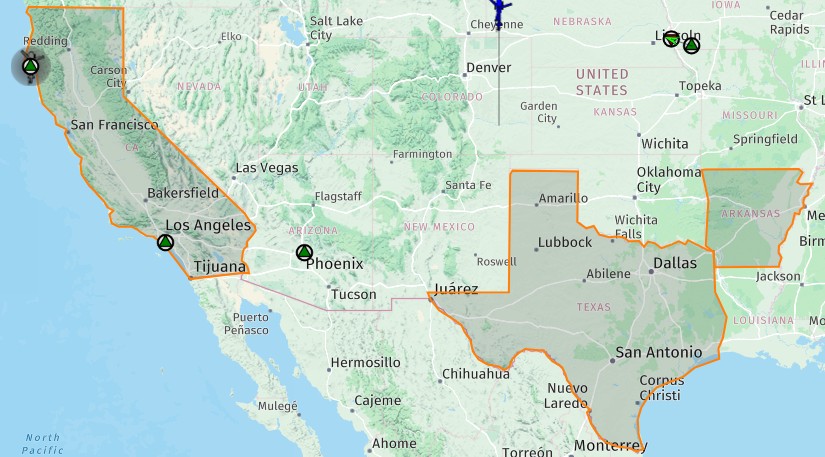

(Image of 3 Response Zones)

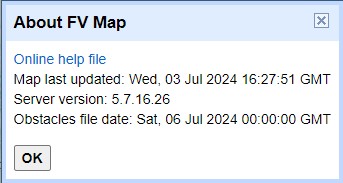

About FVMap

• •
