Triggers- Examples_ Update Waypoint Event Triggers & OOS Event Advances 1%

Dionna Mitchell
Updated

Example of Update Waypoint Event Triggers

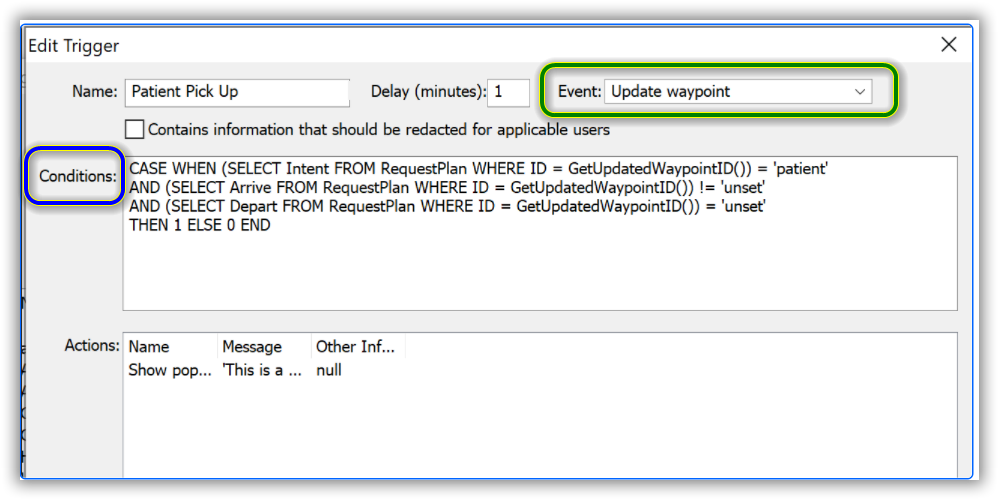

The below is an example of a trigger. You will need to update the Event (Green) and the Condition which is in Blue:

Description



Event



Condition


Arriving at patient pickup Update Waypoint

CASE WHEN (SELECT Intent FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) = 'patient'

AND (SELECT Arrive FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) != 'unset'

AND (SELECT Depart FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) = 'unset'

THEN 1

ELSE 0

END
Arriving at Specific Waypoint Regardless of Patient Update Waypoint CASE WHEN (SELECT Name FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) = 'FILL IN LOCATION' AND (SELECT Arrive FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) != 'unset'AND (SELECT Depart from RequestPlan WHERE ID= GetUpdatedWaypointID()) = 'unset' THEN 1 ELSE 0 END
Departing from a Specific Waypoint Update Waypoint

CASE WHEN (SELECT Name FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) = 'FILL IN LOCATION'

AND (SELECT Depart FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) != 'unset'

THEN 1

ELSE 0
Departing to an Unset Waypoint Update Waypoint

SELECT Depart FROM RequestPlan WHERE ID = GetUpdatedWaypointID())  != 'unset'

AND

(SELECT(Latitude = 0 OR Longitude = 0) FROM RequestPlan WHERE RouteIndex = (SELECT RouteIndex + 1 FROM RequestPlan WHERE ID = GetUpdatedWaypointID()))
Arrive at an Unset Waypoint Update Waypoint

(SELECT Arrive FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) != 'unset'

AND

(SELECT(Latitude = 0 OR Longitude = 0) FROM RequestPlan WHERE ID = GetUpdatedWaypointID())
Departing to a Patient Drop Off Location and a Specific Unit Update Waypoint CASE WHEN (SELECT name FROM requestplan WHERE id = GetUpdatedWaypointID()+1) = 'FILL IN LOCATION' and ReceiverUnit IN ('UNIT NAME', 'UNIT NAME')
THEN CASE WHEN (SELECT intent FROM RequestPlan WHERE id = GetUpdatedWaypointID()) = 'patient'
AND (SELECT depart FROM requestplan WHERE id = GetUpdatedWaypointID()) != 'unset'
THEN 1 ELSE 0 END ELSE 0 END
Is a helicopter and going to a location that is different that the Requestor or Receiver. Update Waypoint

CASE WHEN ishelicopter THEN CASE WHEN (SELECT group_concat(withTransferItem(ID, '(SELECT pick_up_name FROM TcEntryPlan)'), ', ') FROM transferItem) != Requestorname

AND ((SELECT withTransferItem(ID, '(SELECT pick_up_name FROM TcEntryPlan)') != WithTransferItem(ID, 'Requestor') FROM transferItem) = 1

AND (SELECT Intent FROM RequestPlan WHERE RouteIndex = (SELECT RouteIndex FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) + 1) = 'patient'

AND (SELECT Depart FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) != 'unset')

OR (SELECT withTransferItem(id, '(SELECT drop_off_name FROM TcEntryPlan)') != WithTransferItem(ID, 'Receiver') FROM transferItem) = 1

AND (SELECT Intent FROM RequestPlan WHERE RouteIndex = (SELECT RouteIndex FROM RequestPlan WHERE ID= GetUpdatedWaypointID()) + 1) = 'patientDropOff'

AND(SELECT Depart FROM RequestPlan WHERE ID = GetUpdatedWaypointID())!= 'unset'

THEN 1

ELSE 0 END

ELSE 0 END
Departing from any location with the custom waypoint area being unset Update Waypoint

CASE WHEN(SELECT Depart FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) != 'unset' AND GetWaypointStringByID('flight_following', GetUpdatedWaypointID()) = ''

THEN 1

ELSE 0

END
When an asset is using a specific call sign and returning to a specific base name Update Waypoint CASE WHEN CallSign = 'Asset Call Sign'
AND
(SELECT name FROM requestplan WHERE routeindex =
(SELECT routeindex FROM requestplan WHERE id = GetUpdatedWaypointID()) + 1) = 'Base Name'
AND
(SELECT ifnull(depart, 'unset') FROM requestplan WHERE id = GetUpdatedWaypointID()) != 'unset'
THEN 1
ELSE 0
END
This will be used with a delay. If an asset has not departed in x minutes from patient drop off (delay time in the trigger) than the Action will occur Update Waypoint case when (select intent from requestplan where id = GetUpdatedWaypointID()) = 'patientDropOff'
and (select arrive from requestplan where id = GetUpdatedWaypointID()) != 'unset'
and (select depart from requestplan where id = GetUpdatedWaypointID()) = 'unset' then 1 else 0 end
If the asset departs from the first waypoint during a certain hour of the day, the Action will occur Update Waypoint

CASE WHEN (SELECT INTENT FROM RequestPlan WHERE routeindex = (SELECT routeindex FROM RequestPlan WHERE id = GetUpdatedWaypointID()) + 1) = 'patient'

AND (SELECT depart FROM RequestPlan WHERE ID= GetUpdatedWaypointID()) != 'unset'

THEN strftime('%H','now','localtime') >= '07' AND strftime('%H','now','localtime') < '21'

ELSE 0

END
Will fire when a patient is heading to a specific hospital (regardless of if the drop-off is a landing zone/airport etc..). Update Waypoint

CASE WHEN ReceiverName = 'hospital name'  AND (SELECT COUNT(*) FROM transferitem) > 0

THEN CASE WHEN (SELECT Intent FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) = 'patient'

AND (SELECT Depart FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) != 'unset'

THEN 1

ELSE 0

END

ELSE 0

END
With a specific call type and to a specific hospital name Update Waypoint

 CASE WHEN

(SELECT name FROM requestplan WHERE routeindex =

(SELECT routeindex FROM requestplan WHERE id = GetUpdatedWaypointID())+1) = ‘hospital name’

AND

calltype = 'Interfacility'

AND

(SELECT intent FROM RequestPlan WHERE routeindex =

(SELECT routeindex FROM RequestPlan WHERE id = GetUpdatedWaypointID())+1) = 'patient'

 AND

(SELECT depart FROM requestplan WHERE id = GetUpdatedWaypointID()) != 'unset'

THEN 1 ELSE 0 END
Fixed Wing asset going to a receiver with a patient Update Waypoint

CASE WHEN IsAirplane = 1

THEN CASE WHEN (SELECT Intent FROM RequestPlan WHERE RouteIndex = (SELECT RouteIndex FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) + 1) = 'patient'

AND (SELECT Depart FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) != 'unset'

OR(SELECT Intent FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) = 'patient'

AND (SELECT Depart FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) != 'unset'

THEN 1

ELSE 0 END

ELSE 0 END


Use with a delay, if at a fuel stop and have not depart in X minutes. Insert the time you would like for the alert to go as the delay Update Waypoint (SELECT Intent FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) = 'fuel' AND (SELECT Depart FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) = 'unset'
Departing to first waypoint Update Waypoint

CASE WHEN (SELECT Intent FROM RequestPlan WHERE RouteIndex = (SELECT RouteIndex FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) + 1) = 'patient'

AND (SELECT Depart FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) != 'unset'

AND

CallType = 'Air-MF'

AND

CallSubType IN ('On Scene', 'Interfacility', 'STAT TEAM', 'ICN TEAM', 'Fixed Wing',

'TransAM MED Transfer', 'Other-Pilot Training', 'Other-Ferry Reposition', 'Other-Demo', 'Other-Maintenance Flight')

THEN 1

ELSE 0

END
On the way to patient pickup with more than one patient on the request Update Waypoint

CASE WHEN (SELECT Intent FROM RequestPlan WHERE RouteIndex = (SELECT RouteIndex FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) + 1) = 'patient'

AND (SELECT Depart FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) != 'unset' AND (SELECT COUNT(*) FROM transferItem) > 1

THEN 1

ELSE 0

END
Departing towards patient pickup and is a fixed wing asset Update Waypoint

CASE WHEN IsAirplane = 1

THEN CASE WHEN (SELECT Intent FROM RequestPlan WHERE RouteIndex = (SELECT RouteIndex FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) + 1) = 'patient'

AND (SELECT Depart FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) != 'unset'

THEN 1

ELSE 0 END

ELSE 0 END
Departing on patient leg and is a fixed wing asset Update Waypoint

CASE WHEN IsAirplane = 1

THEN CASE WHEN(SELECT Intent FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) = 'patient'

AND (SELECT Depart FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) != 'unset'

THEN 1

ELSE 0 END

ELSE 0 END
Use with a delay - If a time stamp has been selected and an airplane has not left from the first waypoint than the trigger will fire Update Waypoint

CASE WHEN IsAirplane and (SELECT type FROM times WHERE ID = GetAddedTimeID()) = 'Mission Activated/Declined'

AND (SELECT depart FROM RequestPlan WHERE RouteIndex = 0) = 'unset'

THEN 1

ELSE 0

END
Departing from Patient Drop-off Update Waypoint case when (select intent from requestplan where id = GetUpdatedWaypointID()) = 'patientDropOff'
and (select depart from requestplan where id = GetUpdatedWaypointID()) != 'unset' then 1 else 0 end
Difference from Patient Drop off from first waypoint, will trigger if it is more than 150 nm Update Waypoint with distances (distance, fromIndex) as (select
DistanceNM(
waypoint.latitude,
waypoint.longitude,
(select next.latitude from requestplan as next where next.RouteIndex = waypoint.routeindex+1),
(select next.longitude from requestplan as next where next.RouteIndex = waypoint.routeindex+1))
, routeindex
from requestplan as waypoint where waypoint.routeindex != (select max(routeindex) from requestplan))
select
case when not ishelicopter then 0 else
(select sum(distance) from distances where fromIndex < (select routeindex from requestplan where intent = 'patientDropOff')) > 150
end
Departing from Patient Pickup and weight is greater than 150 kg Update Waypoint

case when ((select count(*) from transferitem where cast(withtransferitem(transferitem.id, 'text(''weight'')') as int) > 150 and withTransferItem(transferitem.id, 'dropdown(''weightunit'')') = 'kg') > 0 and

(SELECT Intent FROM RequestPlan WHERE RouteIndex = (SELECT RouteIndex FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) + 1) = 'patient'

AND (SELECT Depart FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) != 'unset'

OR(SELECT Intent FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) = 'patient'

AND (SELECT Depart FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) != 'unset')
then 1 else 0 end
Departing from any waypoint Update Waypoint

Case when
(SELECT Arrive FROM RequestPlan WHERE routeindex=(SELECT routeIndex FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) +1) = 'unset'

 AND

 (SELECT Depart FROM RequestPlan WHERE ID = GetUpdatedWaypointID()) != 'unset'
then 1 else 0 end

Example of OOS Event Advances 1%

This trigger event only works for ASSET Out of Service Reasons.

  • CASE WHEN PercentDoneWithOos > 50 THEN 1 ELSE 0 END
