Coverage Zones

Coverage Zones are available and have a few options available for your assets. See the information below for more details of how to set these up and utilize them.

*Note: some of these options are new in 6.9.0.0, if you don’t see the options you are looking for, check your version.

Instructions

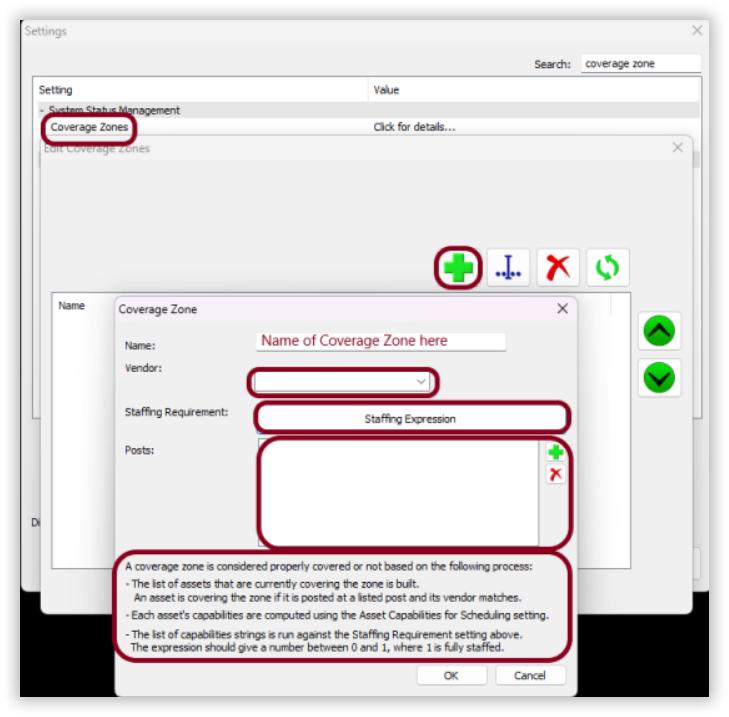

1. Go to Settings → Coverage Zones.
   1. Give your ‘Coverage Zone’ a name
   2. Select the Vendor associated with the ‘Coverage Zone’

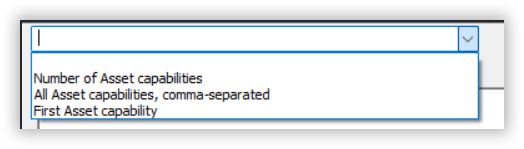

   3. ‘Staffing Expression’ can be built around the following pieces of data, these are available inside the expression’s ‘Condition Builder’ Raw SQL dropdown.
      1. Number of Asset Capabilities
      2. All Asset Capabilities, Comma-Separated
      3. First Asset Capability

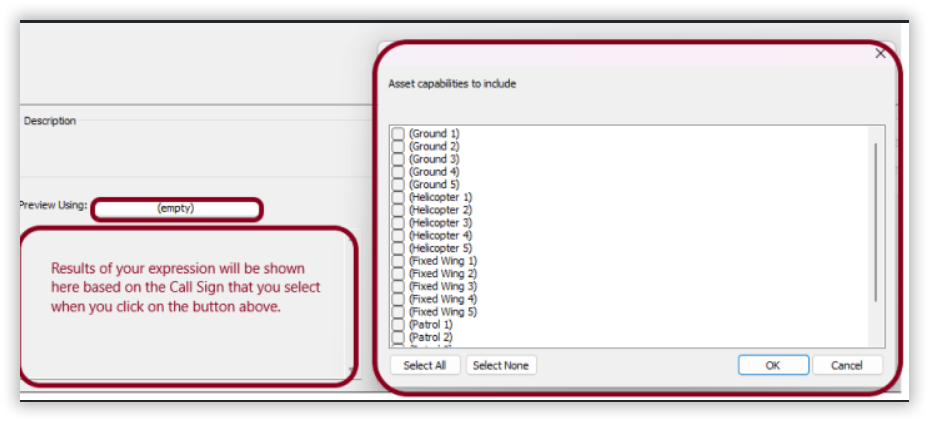

         1. After you build your expression, you can preview it based on Call Signs, as shown below.
2. Posts are added from locations that have already been setup in your CAD.
   1. See the notes on what is required for a coverage zone to be properly covered.

**NOTE: This is for users using System Status Management.
