Assets

The asset list provides the user with the ability to rapidly assess the current state of their fleet and staffing.  Each asset uses a combination of icons, color coding, and text to provide the user valuable information at a glance. There are also a few different settings that apply to setting up an asset. Below are instructions on setting up your assets.

      Some of these options are new in 6.9.0.0, if you don't see the options, you are looking for, check your         version.

 Instructions

Asset Setup

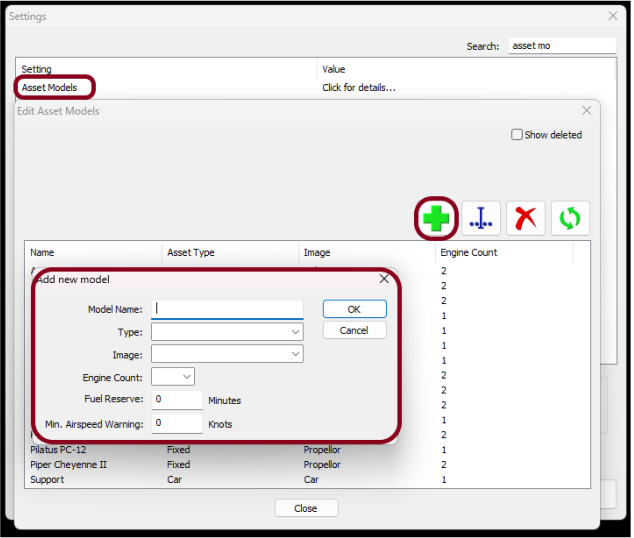

1. The first part of setting up an asset is making sure that you have an ‘Asset Model’ to assign it to. Start by going to Settings → Asset Models. Below you will see the fields required to create an asset model. *Note, you have to do this before you can create an asset.

   a. Asset Model Types that are available are listed below.

      i.Ambulance

      ii. Car

      iii. Fixed (fixed wing aircraft)

      iv. Medical Bag

          1. Can have tracking unit assigned

           2. Does not need default fuel burn

      v. Other Ground

      vi. Rotor (rotor wing aircraft)

      vii. UAV

      viii. Water

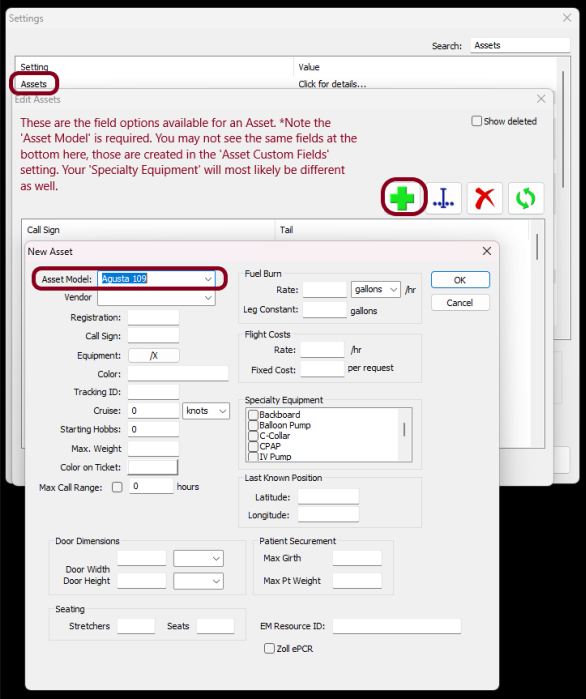

2. After you have your ‘Asset Models’ setup, you can create your ‘Assets’. You do this by going to Settings → Assets, from here fill in the fields appropriately. Below is an example, please note that this is just an example and due to custom settings, you may not see all of the same options as below.

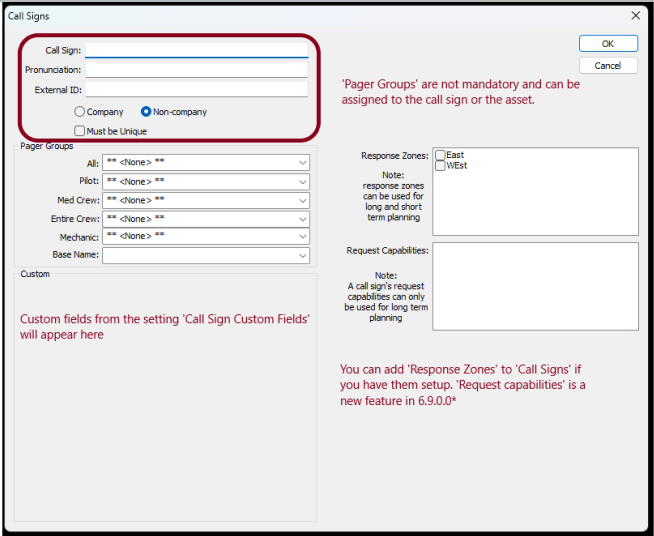

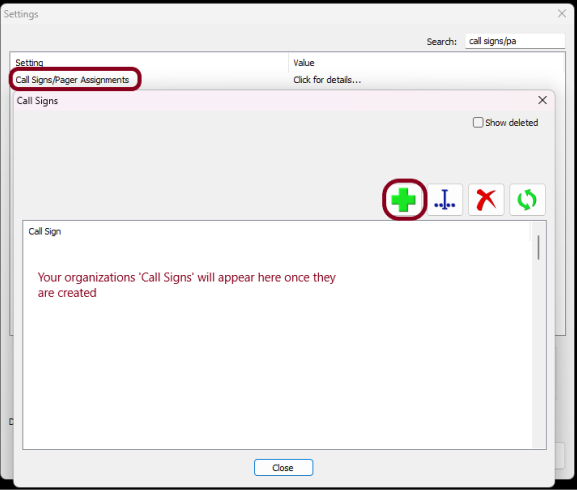

3. ‘Call Signs’ are another part of assets that are important. ‘Call Signs’ are interchangeable between assets; you can change them along with the assigned base of an asset as your operational needs dictate. To create them, go to Settings → Call Signs/Pager Assignments. Below is an image that will you guide you through their creation.

Viewing Assets

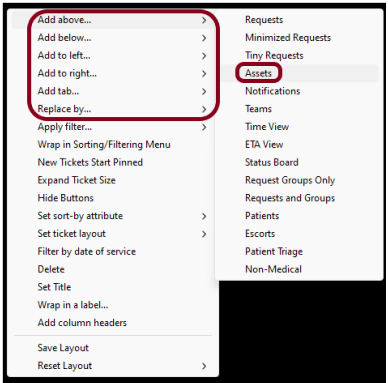

  1. After your ‘Assets’ are all setup, they will appear in your asset list. You can add this to your l              layout by right-clicking and adding ‘Assets’ from any of the options shown below.

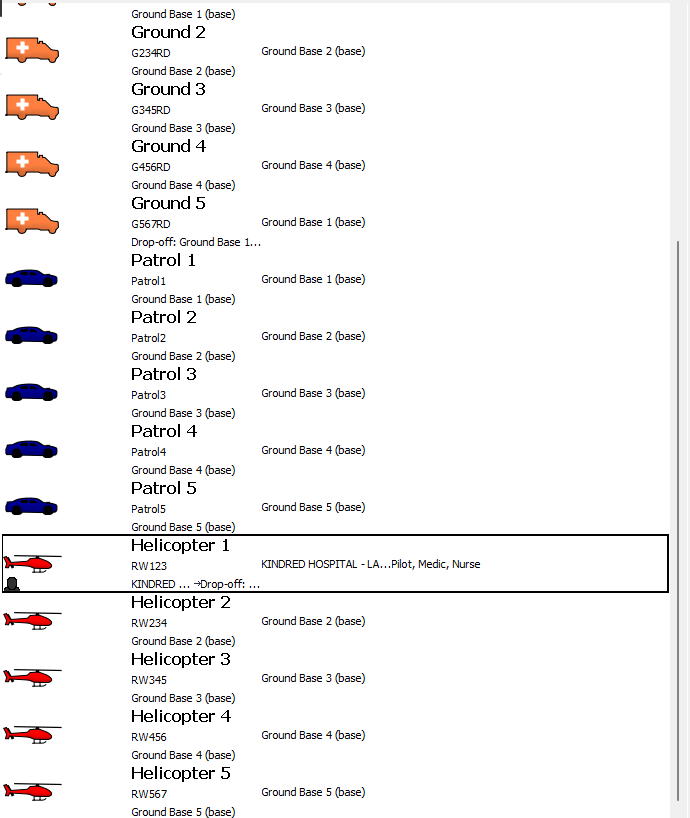

2. Your asset list will look specific to your assets, however, is here an example. Remember that these images are from 6.9.0.0 and may look different than the version you are in.

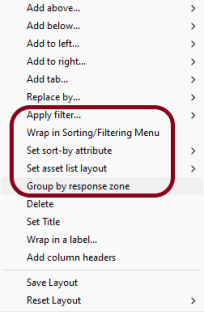

a. You can sort and filter your assets in different ways; you do this by ctrl+right-clicking on the asset list. You will see the options shown below.

 iii. Set sort-by-attribute - these are setup through the ‘Edit Display Sorting Keys’ setting

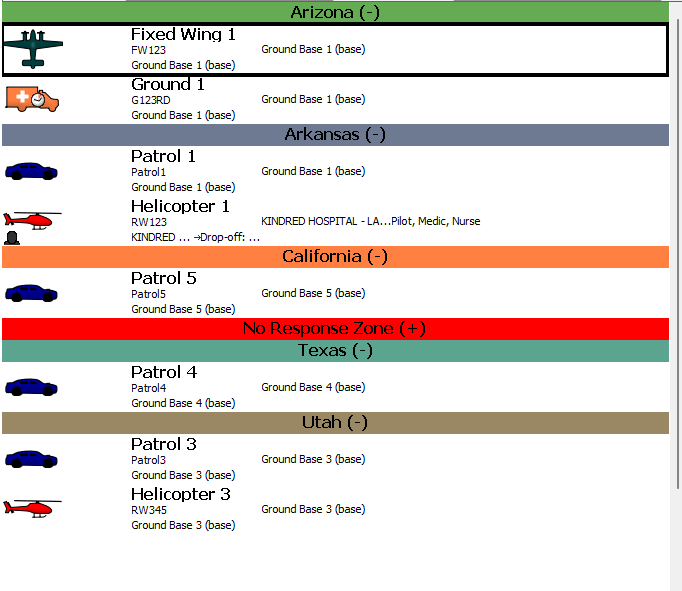

 iv. Group by response zone - this will automatically sort your assets by the response zones they are assigned. If they are not assigned response zones, then they will show ‘No Response Zone’. You can expand or minimize the response zones by clicking on the response zone name.

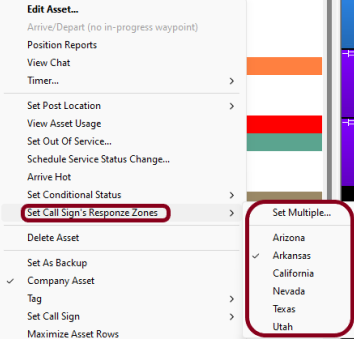

   1. Right-click on an asset and assign one to many response zones

b. Holding the mouse cursor over an asset displays a message with additional information about the asset.  The specific type of asset, status, level of care, the current location of the asset, base, the currently assigned crew and any notes about the asset are displayed in this message.

3. Right-clicking on an asset will give you a lot of options specific to assets. Whether it is setting your asset in and out of service, setting a ‘Conditional Status’, setting, or editing an asset this is the menu you will do it from.

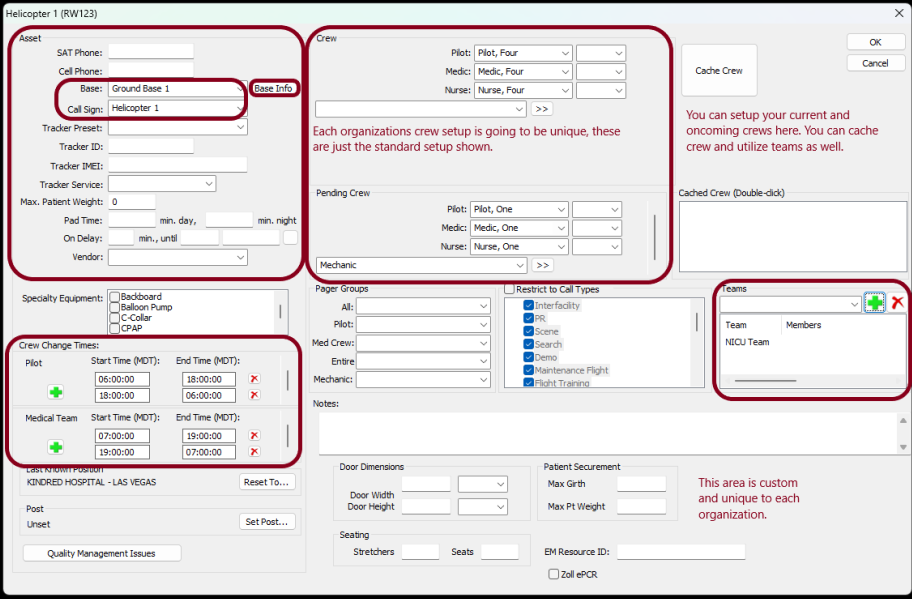

4. Double-clicking on an asset opens the asset information screen as shown below. There are a few things to notice:

 a. ‘Call Signs’ and ‘Bases’ can be changed on an asset as operations dictate.

 b. You can access the base information from the asset. From which you can assign base duty times as well as set base specific information.

 c. ‘Crew’ are setup for the current shift and pending shift. Notice that you can customize the types of crew that are onboard for each shift.

 d. ‘Crew Change Times’ are available for pilots and medical teams.

 e. ‘Pager Groups’ are set from within the asset as well.

 f. Each organization has the ability to customize their assets through Settings → Asset Custom Fields

 g. ‘Last Known Location’ is automatic through asset tracking.

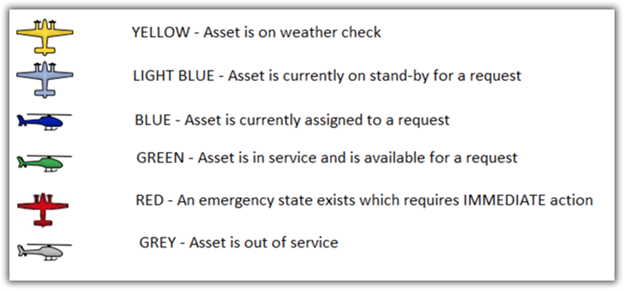

5. Asset colors can be used as default or customized through Settings → Asset Color. However, if you wish to use the default colors they are as defined below.

6. There are a series of icons that you might see appear on an asset throughout your shift, below is a list of the ones you may see and what they mean.

   a. The i icon displayed on the asset indicates that an asset has notes assigned to it.  When                 active, this icon will appear next to the asset to which it refers. Holding the cursor over the               asset or opening the asset information window will allows users to view the notes.

b. The clock symbol appears when it is time for a crew shift change. Shift change times are set in the asset information window.

c. If 'Daily Check for Rotorcraft' is enabled, a white or black dot (depending on the asset's status) will appear notifying the user that the daily check has been completed and can be assigned to a request.

d. The message envelope will appear on the asset if a message has been sent from the asset.
